The Berglund NuEVI & NuRAD Store
|
Patchman Music is an authorized US dealer for the Berglund Instruments NuEVI and NuRAD Wireless MIDI Wind Controllers!
UPDATE: Availability Status as of Tuesday, December 3, 2024 ...
Sorry, we no NuEVI or NuRAD in stock at this time. Please check back often for updates
Email Matt at matt@patchmanmusic.com for further details
If you are looking for the latest in MIDI / USB wind controllers, look no further. Patchman Music is an authorized dealer for the amazing Berglund NuEVI and NuRAD MIDI / USB wind controllers from Berglund Instruments. These amazing new wind controllers feature a legacy 5 pin MIDI Out as well as a USB connection for quick and easy connection to your synth or computer. These instruments are also available with built in wireless MIDI systems and rechargeable LiPo batteries!
Patchman Music sells brand new Berglund NuEVI and NuRAD instruments that have been custom built for Patchman Music to our advanced specifications. Every NuEVI and NuRAD is fully tested and calibrated by Matt Traum here at Patchman Music. Matt has also been involved in the development and refinement of the OS contained in these instruments. Matt also designed the embouchure sensor which is standard now on all NuEVI and NuRAD instruments.
The wind controller world has
waited long enough for a high quality and powerful wind controller. These Berglund Instruments deliver with superb performance and a very high degree of customizabilty through numerous parameters that are easily edited right on the instrument using the crisp built-in OLED display and cursor buttons.
A New Electronic Wind Instrument MIDI Controller
The NuEVI is based on, and features all the playing aspects of, the original Nyle Steiner MIDI EVI. The NuRAD is based on Nyle Steiner's RAD MIDI EWI. These new Berglund instruments include the amazing slur sustain and interval/chord functionality originally designed by Nyle Steiner. Taking the instrument even further, an OLED display with a menu system for settings and sensor adjustments has been added, a USB MIDI port, a legacy 5 pin standard DIN MIDI OUT jack, settings stored in non-volatile memory, built in battery meter, selectable breath curve, and numerous additional control options. A lip sensor (extra controller) for sending Modulation Wheel or Foot Pedal MIDI CC is also included. The NuEVI and NuRAD also feature a built in MIDI Rotator function based on Robby Kilgore's MIDI Rotator- which is a lot of fun to play with any polyphonic synth!
Please note that these instruments are strictly controllers- that is to say they do not have built in sound generators. These instruments must be connected to a MIDI hardware synth or a soft synth running on a computer, which in turn generates the sound. Also for the proper control from your breath, you will need special patches installed in whatever synth or soft synth you use that have been specifically designed to respond to your breath. Patchman Music offers the world's most comprehensive library of sounds specially designed to be controlled with a wind controller. Click here for details.
NuEVI & NuRAD Patchman Music Spec Overview
- Fingering System: NuEVI uses the brass like EVI fingering system based on Nyle Steiner's EVI. The NuRAD can be set to Sax type or EVI type fingering system.
- Power Source: USB and Battery
(AA or rechargeable LiPo type depending on model).
- MIDI Output: Legacy 5 pin MIDI OUT jack and Micro USB jack, class compliant USB MIDI. Both connections can be used at the same time.
- Wireless MIDI Output: Wireless MIDI is included on these instruments from Patchman Music!
- Type of Sensing: Non-moving, capacitive touch sensor.
- Sensors: Touch keys and octave rollers, proportional pitchbend pads, right hand thumb vibrato lever (for violin-like, manual vibrato but also assignable to other functions), solid state breath sensor, pneumatic type bite sensor (for vibrato or portamento control and more), and proportional lip embouchure sensor!
- Breath Sensor System: Closed system (like the original Steiner MIDI EVI). Air is released out of the corners of the mouth when blowing.
- Body: Main body and canister from 3D printed PLA plastic, top and bottom sheets in semi-transparent laser cut/etched acrylic. Color varies so contact Patchman Music
for details.
- CV Output (available as an option on some instruments): 0 to 3.3V breath CV (digitally processed, approximately 1ms interval updated 12 bit (4096 steps) through unused pin of DIN MIDI jack.
- Firmware: Upgradable by the user
How To Purchase
Patchman Music tries to maintain stock of the NuEVI and NuRAD that has been fully calibrated, updated, and tested at Patchman Music by wind controller guru Matt Traum. These instruments are hand built one at a time and imported, so availability is rather limited at this time. If you are interested in purchasing a Berglund NuEVI and NuRAD, Email Matt at matt@patchmanmusic.com to discuss details of what we might have available for you. If we have one available, we advise you do not delay and purchase it while it is available!
Please note that the specific body color and features may vary from what is shown with each custom built instrument. The specific details of the actual instruments that are available will be detailed via email.
NuEVI and NuRAD Downloads and Info
- Click
here to download the latest written info on the NuEVI and NuRAD.
|

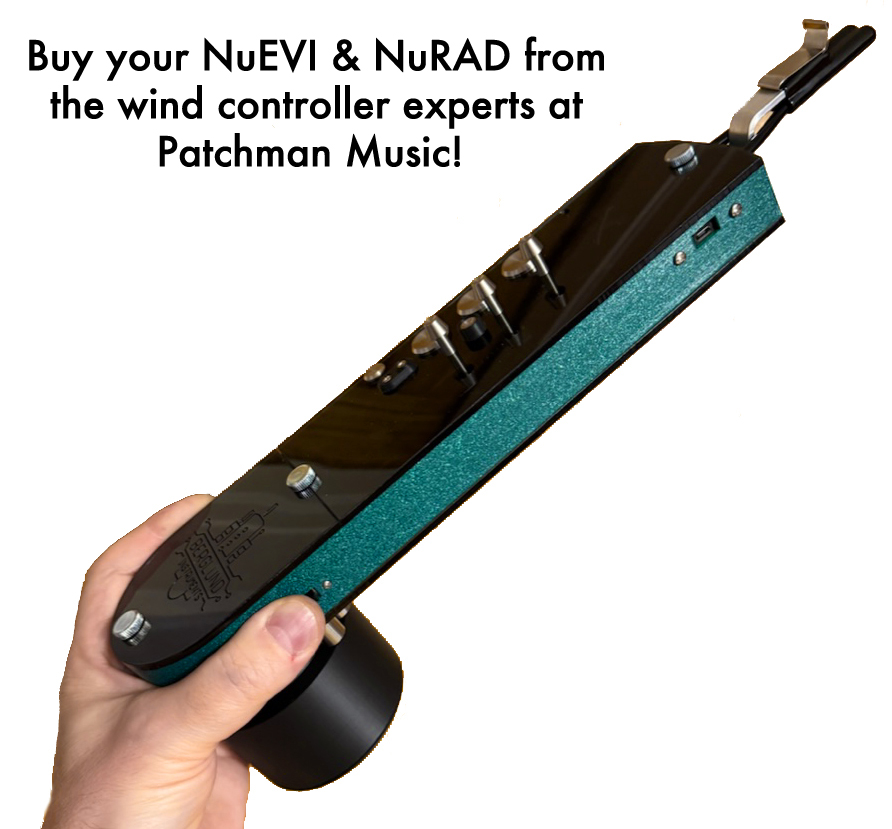

Berglund Instruments NuEVI MIDI / USB Wireless Brass Style Wind Controller
All of the Berglund NuEVI instruments that Patchman Music sells are custom made specially for Patchman Music based on specifications requested by wind controller expert and Berglund consultant Matt Traum. This NuEVI has several upgrades installed including built-in wireless MIDI (the wireless MIDI receiver is not shown but it is included), built-in LiPo rechargeable battery, a soft mouthpiece (these make a HUGE difference compared to the stock version of the mouthpieces), pneumatic type bite sensor (for super sensitive and reliable bite sensing), upgraded octave rollers, and an all-black octave canister with special conductive material on the bottom (so no more having to turn the canister to find the thumb ground plate)! This is a unique EVI!
Other standard features include USB and 5 pin MIDI OUT for easy connection to hardware synths or computers running softsynths, an OLED graphic display is built-in with full editing of the parameters, polyphonic capabilities including rotating chords as popularized by Michael Brecker (requires connection to a polyphonic synth). Additional accessories may also included like the MIDI wireless receiver, cables, manual, etc.
The NuEVI is a superb controller, it has no sounds built in. So it requires an appropriate MIDI synth or soft synth connected to it with properly programmed installed. Patchman Music has created the largest professional library of wind controller patches.
This NuEVI has been personally configured, set up, upgraded, tested, and calibrated here at Patchman Music by wind controller guru Matt Traum so plays like a dream!
These instruments are hand made to our specifications and imported from Sweden and normally can take years to acquire. So if you wish to buy a NuEVI, click the email link below to contact Matt at Patchman Music to make arrangements for the purchase. Don't delay, as supply is very limited!
Email Matt at matt@patchmanmusic.com with questions, availability, and pricing on the Berglund NuEVI. Shipping is to USA destinations only- sorry, no exceptions. |
|

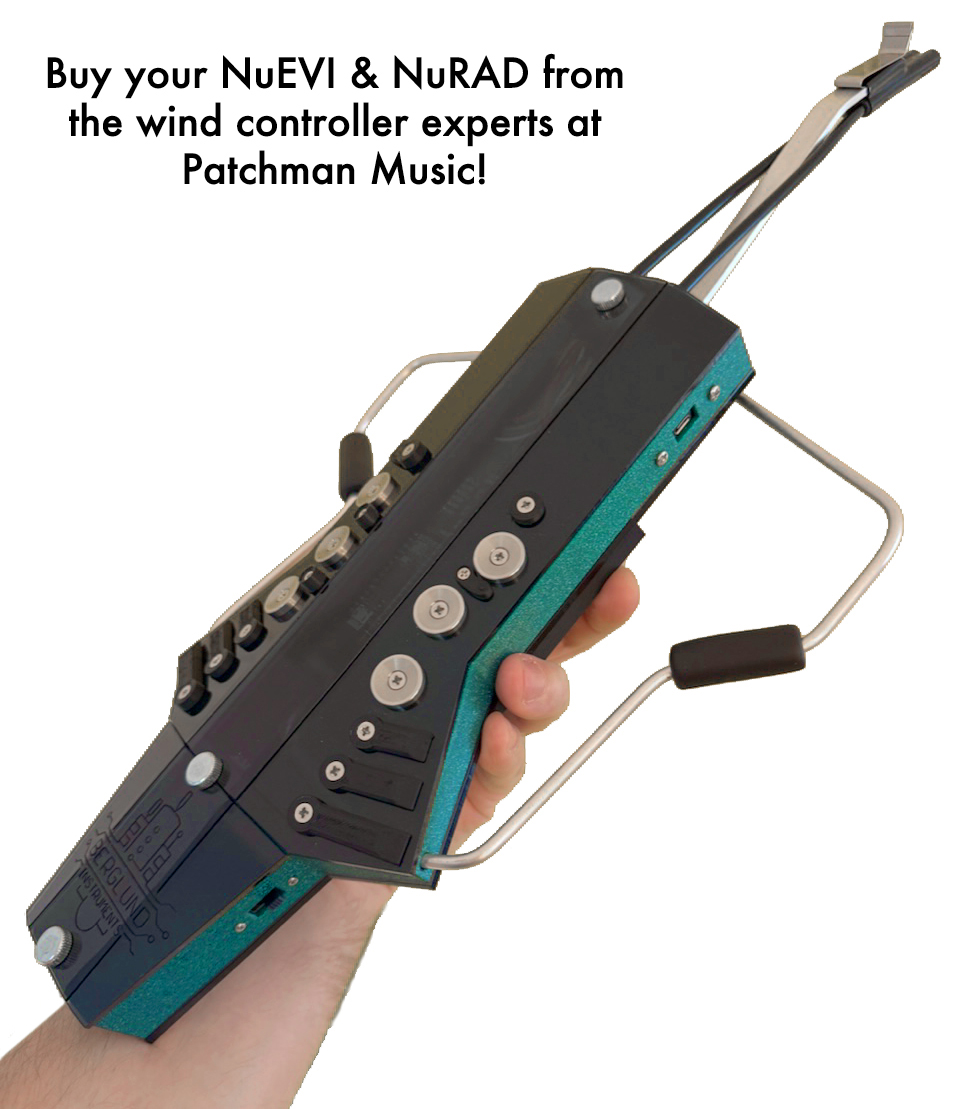

Berglund Instruments NuRAD MIDI / USB Wireless Woodwind Style Wind Controller
All of the Berglund NuRAD instruments that Patchman Music sells are custom made specially for Patchman Music based on specifications requested by wind controller expert and Berglund consultant Matt Traum.
This NuRAD has several upgrades installed including built-in wireless MIDI (the wireless MIDI receiver is not shown but it is included), built-in LiPo rechargeable battery, a soft mouthpiece (these make a HUGE difference compared to the stock version of the mouthpieces), and pneumatic type bite sensor (for super sensitive and reliable bite sensing). This is a unique EWI!
Other standard features include USB and 5 pin MIDI OUT for easy connection to hardware synths or computers running softsynths, an OLED graphic display is built-in with full editing of the parameters, polyphonic capabilities including rotating chords as popularized by Michael Brecker (requires connection to a polyphonic synth). Additional accessories may also included like the MIDI wireless receiver, cables, manual, extra key tops, neck strap, etc.
The NuRAD is a superb controller, it has no sounds built in. So it requires an appropriate MIDI synth or soft synth connected to it with properly programmed wind controller patches installed.
This NuRAD has been personally configured, set up, upgraded, tested, and calibrated here at Patchman Music by wind controller guru Matt Traum so plays like a dream!
These instruments are hand made to our specifications and imported from Sweden and normally can take years to acquire. So if you wish to buy a NuRAD, click the email link below to contact Matt at Patchman Music to make arrangements for the purchase. Don't delay, as supply is very limited!
Email Matt at matt@patchmanmusic.com with questions, availability, and pricing on the Berglund NuRAD. Shipping is to USA destinations only- sorry, no exceptions. |
Click Here for Additional Wind Controllers and Accessories
NuEVI & NuRAD User Comments |
"I
absolutely LOVE my NuEVI! I have been
using it in my live performances and recordings for several years. I use it with my hardware MIDI synth modules as well as my Mac laptop running softsynths and it has performed beautifully for me. I love the fact that is has a built in OLED display which allows me to easily see and edit parameters of the NuEVI right on the instrument itself. And the built in MIDI wireless system is wonderfully liberating." - Matt
Traum, EVI Performer, Wind Controller Specialist, Sound Designer
Items on this page and all other hardware are shipped
only within the USA- NO EXCEPTIONS
(Patchman Music software products CAN be shipped worldwide)
Shipping fees are higher for Alaska and Hawaii.
All items listed on this page are NEW
All items on this page (except accessories & replacement
parts) include FULL FACTORY WARRANTY
NO SALES TAX! (except for Ohio destinations)
Prices are subject to change
