ASM DIOSYNTH

Welcome to the ASM Store at Patchman Music

Wind Controller Soundbanks & Samples!

Patchman Music offers the world's largest library of professional soundbanks specially designed for use with wind controllers and breath controllers.

Click here for complete details on our Wind Controller Soundbanks

Click image for larger view

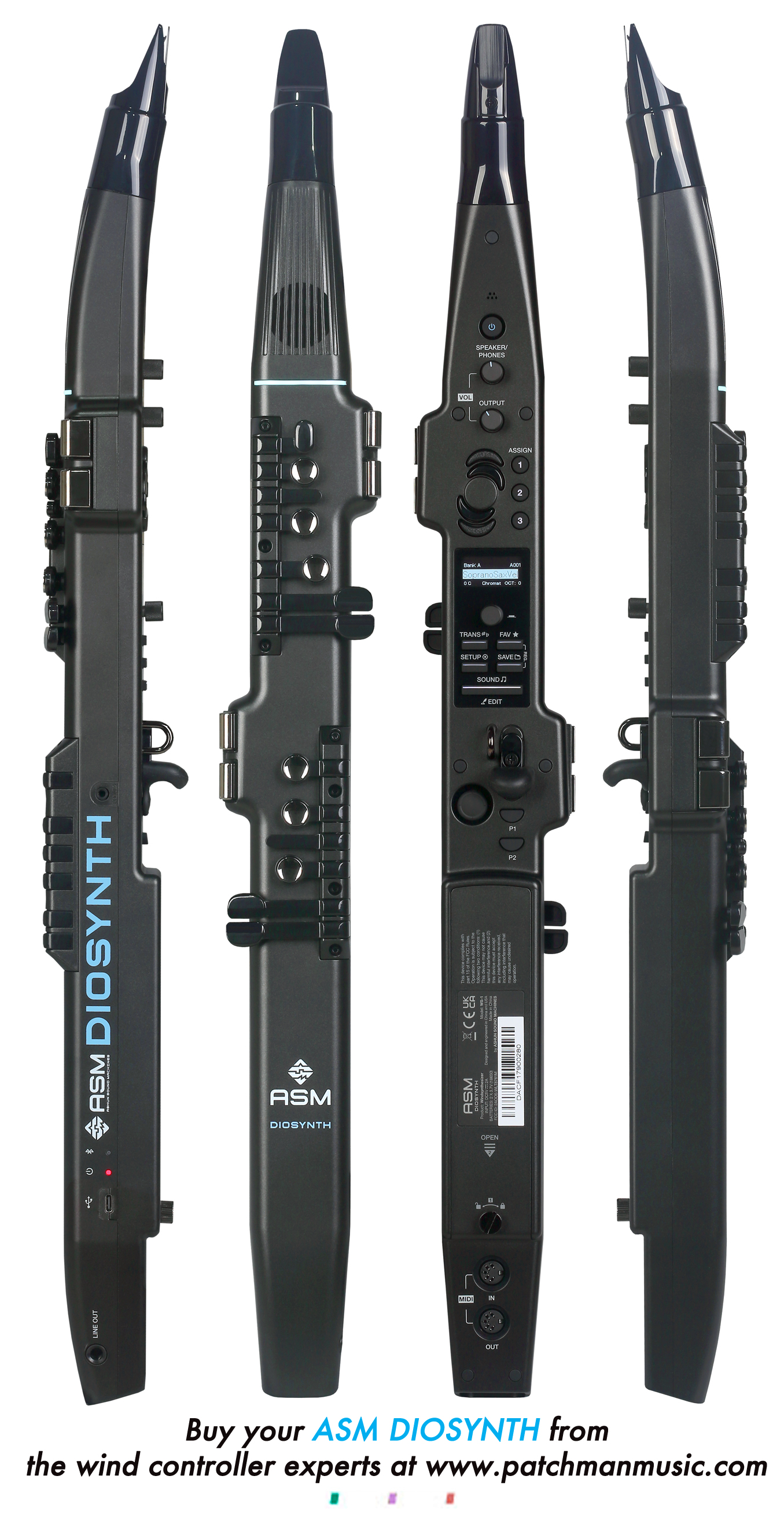

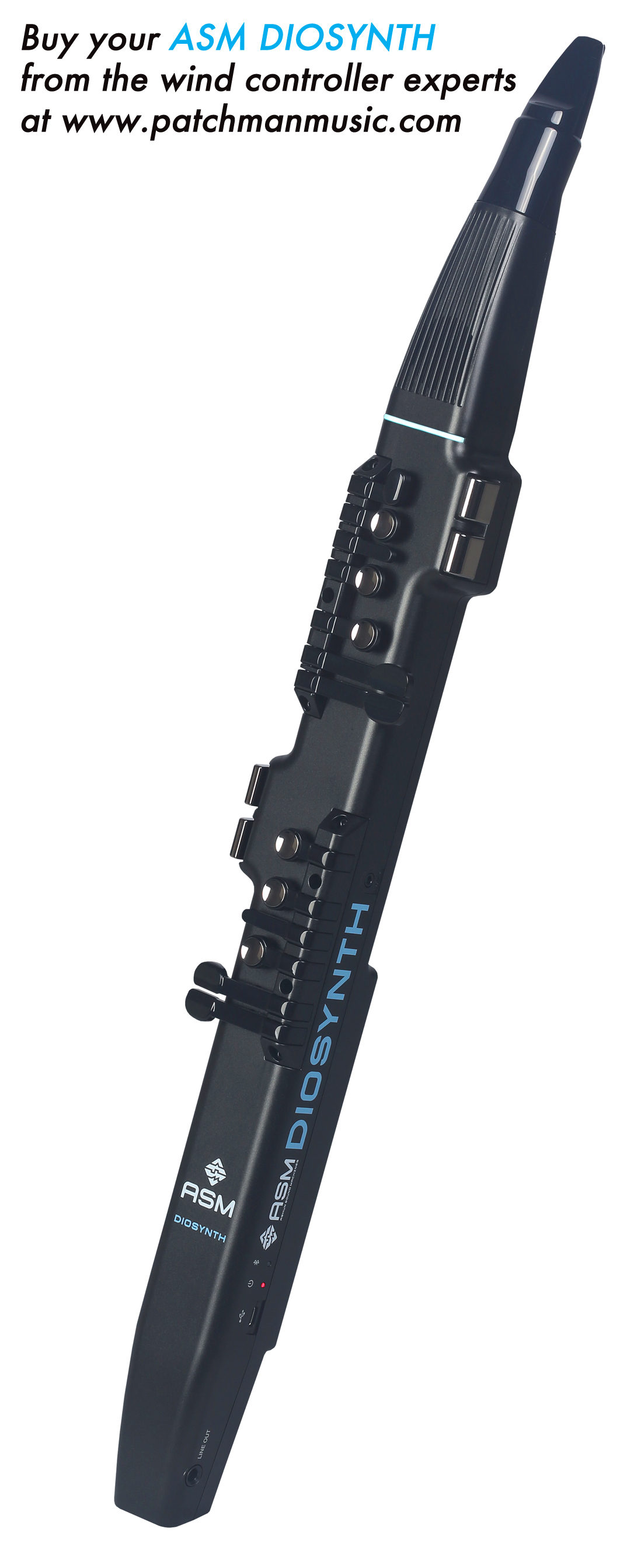

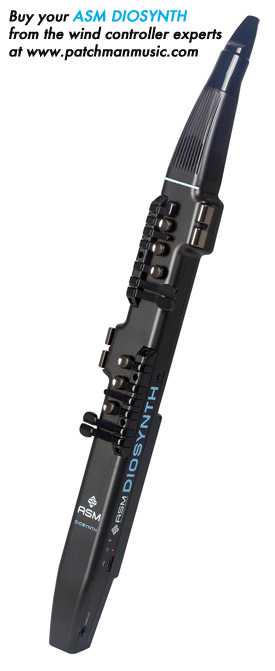

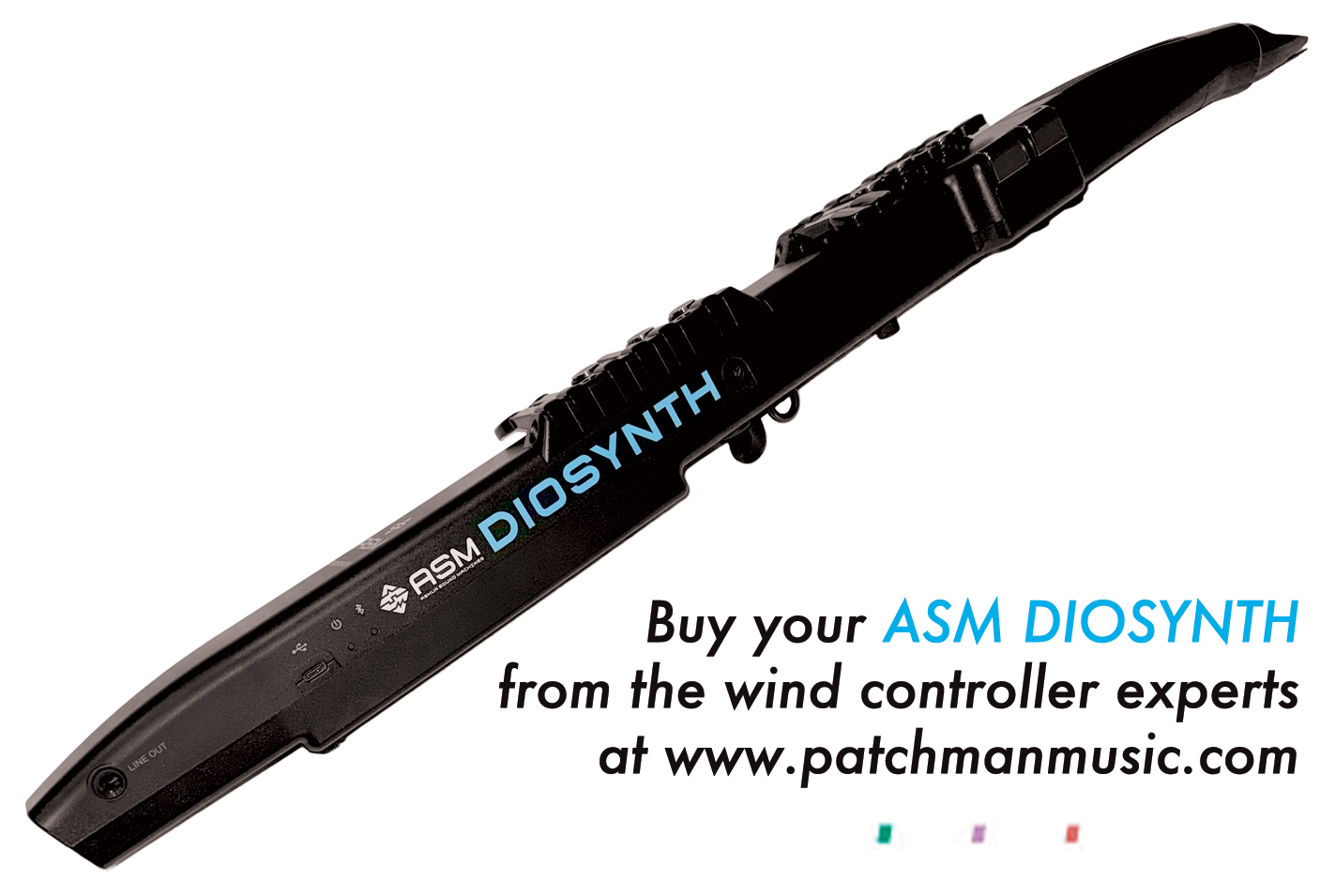

ASM DIOSYNTH Electric Wind Instrument

Patchman Music sells the DIOSYNTH at the BEST PRICE ANYWHERE. So low, we cannot post it here! Email Matt at matthewtraum@icloud.com for your price!

EXCLUSIVE BONUS FROM PATCHMAN MUSIC:

$50 store credit towards purchase of any single Patchman Music branded soundbank!
Personally updated to the latest firmware, calibrated, & tested by wind controller guru Matt Traum!

Patchman Music, the leading source for wind controllers in the USA, is proud to announce that we are now offering the ASM Diosynth at the best price ANYWHERE!

The new ASM DIOSYNTH is a highly expressive instrument that combines a deep synthesis engine with a sample playback engine, offering the best of acoustic and electronic sounds. Designed with wind players in mind, Diosynth features mechanical keys that replicate the feel of real sax and wind instruments- avoiding the flat button-style controls found on other wind synths. Multiple fingering modes, scale/key locking, and octave keys covering over eight octaves provide a familiar and versatile playing experience.

In addition to Sax, Flute, & Recorder fingerings, the ASM DIOSYNTH also includes the special Trumpet / EVI Fingering Mode originally designed for other wind controllers by Patchman Music's own Matt Traum. This allows trumpet, EVI, and other brass players to play the DIOSYNTH with relative ease. So woodwind and brass players can all play the SAME INSTRUMENT simply by selecting the appropriate fingering system! Click here for a general overview of the EVI brass fingering system and this short video by Matt Traum shows the basics of the brass EVI fingering system as applied to a simple woodwind style form factor.

For expression, Diosynth includes breath and bite sensors, an internal gyro, X/Y joystick, two pressure pads, and three programmable switches. It ships with 384 patches and supports a total of 768 patch locations, covering everything from traditional wind instruments such as saxophones, trumpets, and flutes to synth leads, basses, and tempo-synced, layered synth textures.

The sound engine is based on Ashun Sound Machine's renowned Hydrasynth with the addition of a new sample playback oscillator, giving Diosynth endless possibilities for sound creation and design. The Diosynth synth engine includes two WaveScan oscillators with 219 waveforms, 16 Hydrasynth filter models, including vowel filter, Noise generator with ASM Hydrasynth morphing filter, 32-slot modulation matrix, 5 LFOs with step sequencer modes, 5 Envelopes with looping modes, 'Growl effect': Ringmod with 3rd Oscillator, and more!

Sample Instruments: 128 instrument samples include Flutes from Piccolo down to Contrabass Flute, Saxes from Soprano down to Eb Tubax, Clarinets from Eb soprano down to Contralto, Double reeds, Oboe down to Contrabassoon, Ethnic Flutes and Whistles, Trumpets, Trombones, French Horns and Tubas with mute variations and sections, Violins, Cello, Bass, Ensembles, Harmonicas, Accordions, and more! ASM has meticulously sampled 128 unique reed, brass, fipple, and string-based sounds. Rare and exotic instruments are included like the contrabass Flute, Eb Tubax, and Peruvian llama whistle!

Users can blend realistic acoustic instruments- like a Harmon-muted trumpet or Peruvian bamboo flute- with Hydrasynth's wavescan oscillators and process them through the 16-mode filter to create rich hybrid tones. Having one sound like this would be amazing enough but you can layer or split two distinct parts, combining up to four Hydrasynth oscillators and two sample-based voices simultaneously.

Key Features: Real keys for real musicians, 2 Instruments (Parts) so you can layer or split sounds, ships with 384 patches (can store up to 768 total), Transpose to any key, globally or per patch, Multiple fingering modes (Saxophone, Flute, Trumpet, Recorder), XY joystick for live performance controls, 2 thumb pressure pads, 3 assignable buttons, Gyro positional sensor can be used as a mod source, 8+ octave range.

Connectivity features include 1/4" stereo output, 1/8" headphone jack with dedicated volume, 5 Pin MIDI DIN IN/OUT, USB C for MIDI & Audio I/O, Bluetooth MIDI IN/OUT, Bluetooth audio input for playing along with music streams. Users can listen via the built-in speaker or headphones. Diosynth is powered by the included USB-C adaptor or via two 18650 rechargeable batteries (not included).

Software Sound Editor: A Mac/PC Patch Editor/Patch Manager app allows you to edit your sounds and create sound banks, download new sound banks as they are released, create your own samples and upload them. As well, an iOS/Android Set List Manager makes recalling patches easy and visual for live performers.

Each ASM Diosynth ships from Patchman Music in a custom gig-ready hard-shell case with all required cables and accessories.

ASM DIOSYNTH Features & Specifications:

• DISPLAY: OLED display with battery level indicator
• LANGUAGES: English, Chinese
• FINGERINGS: Sax, Flute, Recorder, Trumpet/EVI
• SAMPLED INSTRUMENTS: 128 (Woodwinds, brass, double reeds, strings, and more)
• SYNTHESIZER WAVEFORMS: 219

• PATCH MEMORY LOCATIONS: 768 (6 banks x 128 patches)

• FAVORITES: 128 patches

• OCTAVE: +/-3 octaves
• TRANSPOSE: +/-11 semitones
• SCALE TUNING: Yes
• MASTER TUNING: 380 - 500 Hz
• EFFECTS PART 1: Insert Effect (See Master Send Effects), EQ
• EFFECTS PART 2: Insert Effect (See Master Send Effects), EQ
• MASTER SEND EFFECTS: Bypass, Room, Hall 1, Hall 2, Real, Tempo Delay, Tempo Echo, Cross Delay, Chorus 1, Flanger, Chorus 2, Ensemble, Dual Rotary, Phaser, Tempo Phaser, Classic OD, Overdrive, Amp 1, Amp 2, Classic Metal, Classic Hard, Hard Dist, Metal Dist, EQ, EQ Hi-Fi, EQ Rock, Compressor, Comp Standard, Comp Limiter, Comp Attack, Vibrato, Classic Tremolo, Auto Pan, Auto Wah, BPM Auto Wah
• MASTER REVERB: Room, Standard, Hall, Church

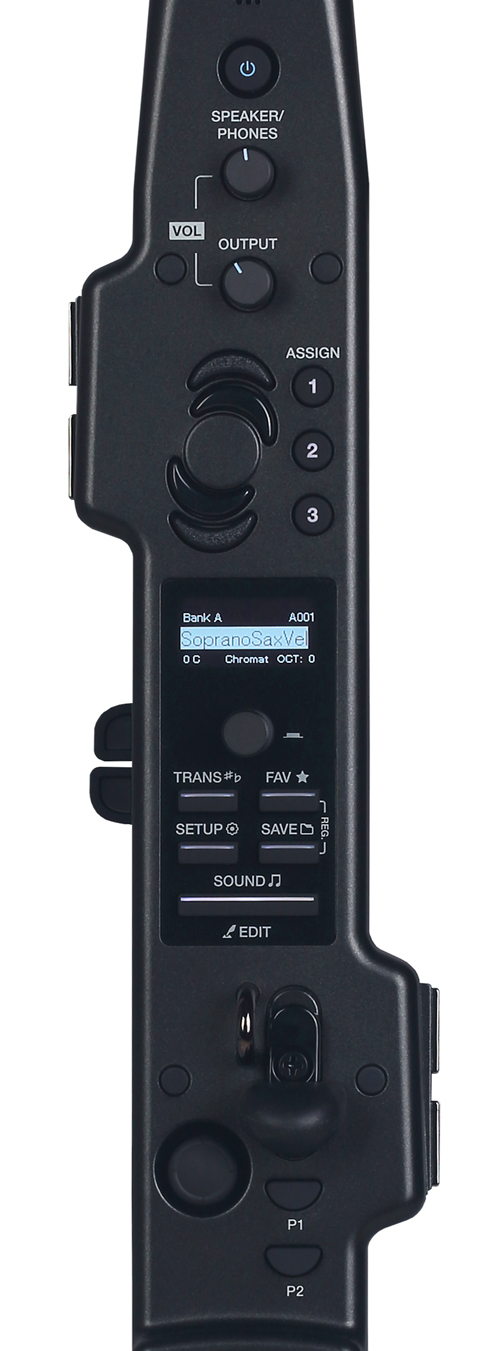

• CONTROLS: Breath force sensor, Reed Bite sensor, 4 x Octave buttons (9-octave range), X/Y joystick, Control panel with clickable encoder & Mode buttons (Transpose, Favorites, Setup, Save, Sound/Edit), Assignable buttons (3), Pressure-sensitive buttons (2), separate volume controls (Speaker/Phones and Output), Gyro sensor
• CONNECTIVITY: Line out (1 x 1/4" [6.35 mm], mono TS or stereo TRS), Headphones (1 x 1/8" [3.5 mm]), MIDI In/Out (5-pin DIN), USB MIDI & Audio, Bluetooth MIDI, Bluetooth Audio (input only)
• BUILT-IN SPEAKER: Yes
• BUILT-IN SPEAKER POWER RATING: 2W
• POWER: 5V DC, 2A
• BATTERIES: Not included.
• BATTERY TYPE: Two 18650 lithium rechargeable batteries (9900mAh suggested)
• DIMENSIONS: 3.27 x 2.65 x 27.46 in / 8.3 x 6.73 x 69.75 cm
• WEIGHT: 2.0 Lbs / 0.9 kg

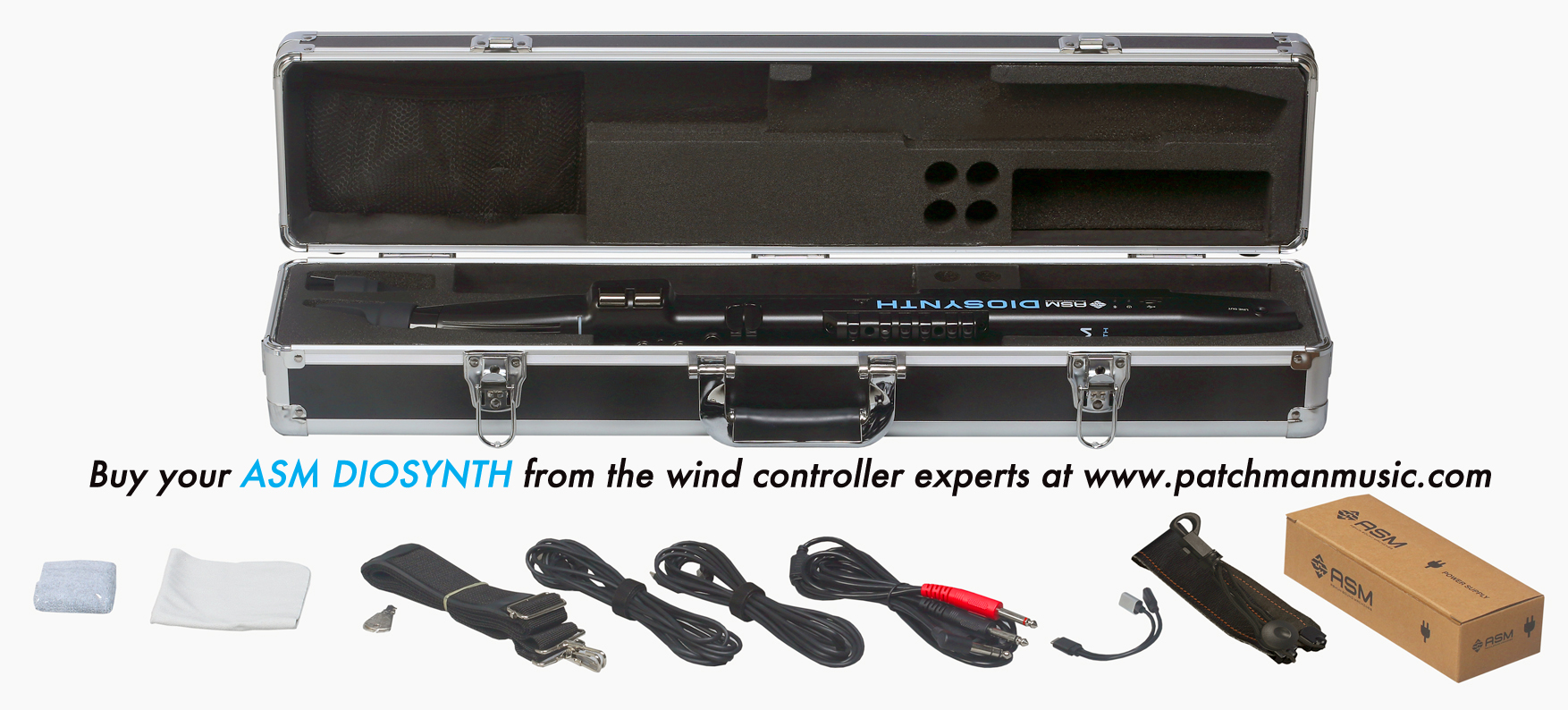

• ACCESSORIES INCLUDED IN THE BOX: Hard-shell travel case, folding stand, 2 mouthpieces, neck strap, power supply with universal power adapters, USB A-C cable, USB C-C cable, USB power Y cord, spit scrunchy, cleaning cloth, printed User guide. The photo below shows all the bundled accessories that Patchman Music includes with every ASM DIOSYNTH...

Buying your ASM DIOSYNTH from Patchman Music INCLUDES professional calibration, set-up, the latest firmware installed & tested, personalized service from wind controller Guru Matt Traum, & fast shipping/handling/insurance. You are also supporting a small business.

Patchman Music sells the amazing ASM DIOSYNTH at the best price available ANYWHERE! It is so low we cannot post it here! Email Matt at matthewtraum@icloud.com for your special price for our ASM DIOSYNTH customers! Really!

SHIPPING January 2026! Click here to pre-order online
